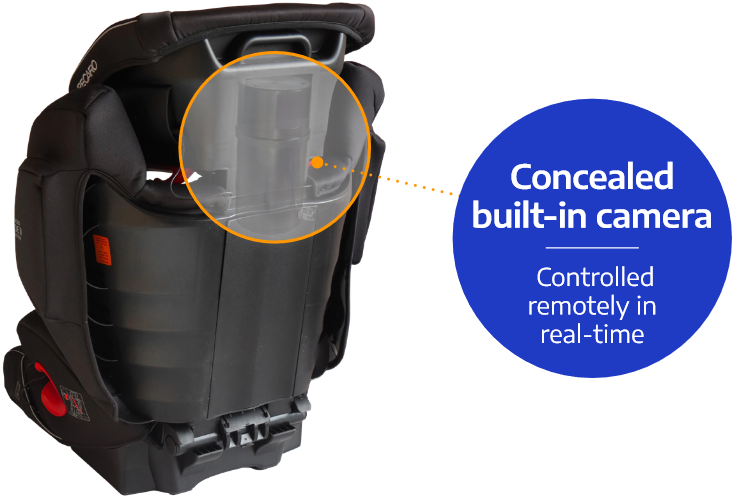

The Firebird™ Child Seat camera hide has been specifically designed as a covert rapid deployment solution built in a popular form factor for surveillance applications.

The easy-to-install unit comes complete with its own built-in FireBird™ F-100 ultra-low bitrate video encoder and transmitter. Once installed, the child seat camera can be viewed and controlled remotely in real-time, allowing access to the built-in camera even from locations where cellular bandwidth may be severely limited.

Features

  • Provided as a 12v or integral POE
  • PTZ camera is 360° and can be forward or rear-facing
  • Rapid deployable as part of a surveillance system
  • Installed in minutes, enabling live viewing for up to 3 hours
  • Rechargeable via the vehicle 12v source

With its own internal battery, the child seat can be installed and be operational in minutes enabling live viewing for 2-3 hours. For longer periods, it can be powered and recharged by the vehicle’s 12v source

Streaming Capabilities
Camera Inputs Integrated 360 PTZ camera,1/2.8” Starvis, 2.13 Megapixels, 30x Optical zoom F=4.7mm (wide) to 141.0mm(tele) , 4x digital zoom, 61.2° to 2.2° FoV (tele end) 0.005 Lx (1/30s) (colour) 0.0005 Lx (1/30s) (Monochrome)
Stream Outputs 1, 2 or 4 simultaneous stream output options at full rate
Encoding 4kbps low-res to 2Mbps high-res 1080p 30fps transcoded or unlimited Native mode
Mechanical & Environmental
Dimensions 750mm (H) x 560mm (W) x 450mm (D)
Operating Temperature -0 ~ 50 °C
Power Input 12V
Weight 6.1KG
Consumption 2.4w (motors inactive), 3.2w (motors active)
Total PoE budget 500mAh max when using the motors.*
Certifications N/A
Interface & Connectors
Ethernet 1x RJ45
USB 1x USB-C for storage or ethernet adapter for camera connection
Recording Micro SD card slot (up to 1TB) or external storage
Modem 4G LTE cellular modem w/GPS Micro SIM Push-Push slot
Antennas 2x SMA Male – LTE Main, LTE Aux or GPS
