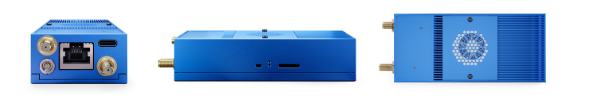

The FireBird™ F-100 is our smallest gateway designed specifically for video streaming applications where size and weight are of utmost importance. Measuring only 105mm long, 47mm wide and 25mm high, the FireBird™ F-100 is one of the best form factors for covert surveillance or for integrating into small spaces.

Features

  • Real-time low bitrate video
  • Full, high-quality local recording
  • Multiple areas of interest
  • Total Recall™ image enhance
  • Video, audio, GPS and data streams
  • Secure encrypted communications
  • Multiple simultaneous output streams

Mission Critical Video Streaming

Running Videosoft’s Edge Gateway software (see separate datasheet), the FireBird™ F-100 improves real-time situational awareness by providing multiple simultaneous streams to command centres and operatives in the field using efficient bandwidth management.

Industry experts in ultra-low bandwidth video compression and transmission of live video, audio and data streams

Inside the FireBird™ F-100, Videosoft’s efficient and adaptive video compression techniques and real-time transmission protocols ensure reliable and low latency delivery of streams –
even across ultra-low bitrate, unreliable or congested networks, including mobile and satellite. Streams and data from the FireBird™ F-100 are viewed and managed remotely by Videosoft apps running on Windows, Android and IOS. Streams can be fed to industry-standard VMS solutions, using Onvif and RTSP, to be incorporated as part of a wider management platform.

Streaming Capabilities
Camera Inputs 1 ethernet, 1 USB-C (ethernet adapter compatible), up to 4 with switch
Stream Outputs 1 – 4 simultaneous stream output options at full HD
Encoding 4kbps low-res to 3Mbps high-res 1080p 30fps transcoded or unlimited Native mode
Mechanical & Environmental
Dimensions 105mm (L), 47mm (W), 25mm (D)
Operating Temperature -10°C to +45°C ambient
Power Input 12v DC (LEMO FGG.00.302.CLAD35)
Weight 0.20KG
Consumption 8.5W @ 12VDC (fan off)
Total PoE budget 500mAh max when using the motors.*
Total PoE budget N/A
Certifications N/A
Interface & Connectors
Ethernet 1x RJ45
USB 1x USB-C for storage or ethernet adapter for camera connection
Recording Micro SD card slot (up to 1Tb) or external storage
Modem 4G LTE cellular modem w/GPS Micro SIM Push-Push slot
Antennas 2x SMA Female – LTE Main and GPS (LTE Aux optional to replace GPS)
Accessories
Included 2x Multiband Antennas, Power connector and lead
